JL Audio XD-FDBU-2

Manufacturer: JL Audio
SKU: 699440904612
Manufacturer part number: 90461

Product Description

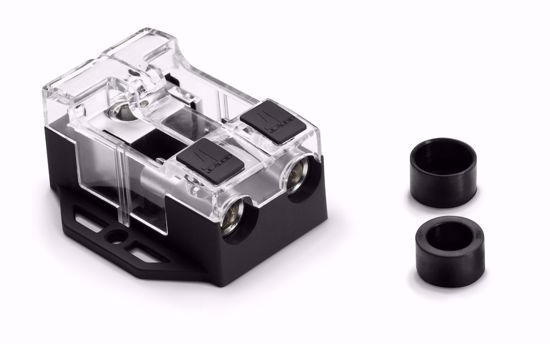

2-Way MAXI™ Fused Distribution Block

2-Way Fused Power Distribution Block


Designed to split a large wire down to two smaller wires where fusing of the small wires is needed. The input of this block accepts wire from 1/0 to 4 AWG, while the two fused outputs each accept wire from 4 AWG to 8 AWG. OmniSert™ receptacles capture various size wires without the need for adaptor sleeves.

Forged and machined brass construction with marine-grade stannum plating. A high-temperature polycarbonate base and cover provide insulation and protection.

Requires two MAXI® Fuses, appropriately rated for the equipment being connected. These are sold separately. Fuses can be pulled and inserted without removing the cover.

Availability: Out of stock
