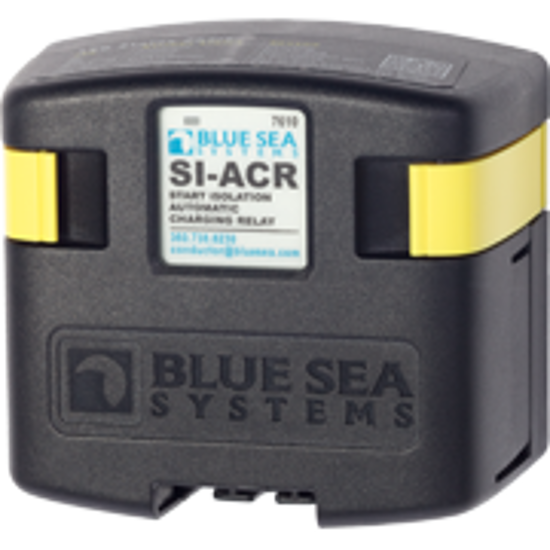

Blue Sea Systems - Automatic Charging Relays

Manufacturer: Blue Sea Systems
SKU: 632085076108
Manufacturer part number: 7610

Product Description

Automatically combines batteries during charging, isolates batteries when discharging and when starting engines

  • Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
  • Designed for 12 or 24 volt systems
  • 12/24 volt auto ranging voltage input
  • Hermetically sealed contacts/vaporproof
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Supports high-output alternators up to 120 Amperes
  • Dual sensing

Optional Features

  • Start Isolation allows temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics from sags and spikes
  • Remote LED remotely indicates ACR states - requires optional LED
Availability: In stock
Products specifications
Dimensions 1.12in (28.45 mm) X 0.875in (22.23 mm) X 3/8" - 16 (M10)
WEIGHT 1.25lb (0.57 kg)
Current (Max) 175mA (combined)/15mA (open)
Nominal Voltage 12V DC/24V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 120A
Intermittent Rating 210A (5 min)
Cable Size To Meet Ratings 1/0 AWG
