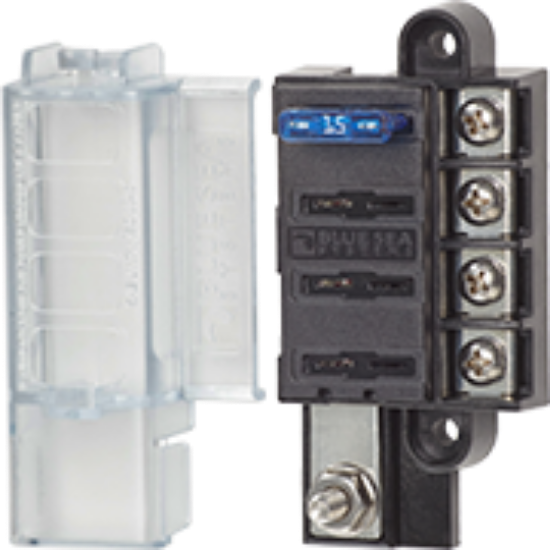

Blue Sea System - ST Blade Compact Fuse Blocks - 4 Circuits

Manufacturer: Blue Sea Systems
SKU: 632085050450
Manufacturer part number: 5045
$38.99
Blue Sea System - ST Blade Compact Fuse Blocks - 4 Circuits

Product Description

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.
  • Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 4 write-on circuit labels
  • Fuses sold separately
Specifications
Circuits4
Maximum Amperage 100A per block
30A per circuit
Maximum Voltage32V DC
Mounting#8 Screw (M4)
Terminal Stud Torque24 in-lb (2.71 Nm)
Screw Terminal Torque18 in-lb (2.03 Nm)
Screw Terminal Type#8-32 Scews with captive star lock washer
Terminal Stud Size#10-32
Weight0.25lb (0.11 kg)
